Powerful 5 Axis CNC Milling Center With ARM+DSP+FPGA function cnc milling controller

FOB Reference Price:Get Latest Price
$300.00 - $900.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
SZGH-CNC1000MDc-5
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
SZGH
Application:
Milling Machine
Weight:
10KG
Certification:
CE /ISO 9001, CE
Dimension(L*W*H):
400*245*120mm
Adopt Technology:
Modbus+ARM+DSP+FPGA
Displayer:
8 inch real color LCD
H.S code:
8537101101
Memory:
64MB
User store room:
128Mb
Communication mode:
RS232
Copy Function:
U disk DNC function
Processing Speed:
0.01-30m/min
Airframe:
Gray/Black
Supply Ability
Supply Ability:
800 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
as standard package of SZGH
Port
Shenzhen CHINA

Powerful 5 Axis CNC Milling Center With ARM+DSP+FPGA  Function


Product Description

         3-5 axis CNC milling controller SZGH-CNC1000MDc include 3 axis, 4 and 5 axis , it is closed loop CNC controller and able to work with absolutely encoder motor , support PLC , macro and automatic tool exchange and encoder feedback function,specilized in milling machine center, with I/O 32X32,support bus network connection, and absolutely type motor Linear encoder feedback etc, it is high classes and very stronger CNC milling controller.



Application:CNC milling machinery ,  machining center; milling center; wood working machine; numerically control grinder; MTDC applied to engraving CNC machine

Milling 1.JPG



Feature:

1) 32 bits high performance, low power consumption industrial grade ARM microprocessor.
2) 64MB memory.
3) 32Mb user store room.
4) 640x480 8 inch real colour LCD displayer.
5) Touch screen main and sub panel.
6) High anti-jamming switch power.
7) USB movable U disc copy interface.
8) RS232 interface.
9) Spindle servo speed control/spindle frequency convertion speed control.
10) Manual pulse generator.
11) PLC and macro function
12) English menu, program and interface, full screen edition
13) CNC1000MDc include 3 axis, 4 and 5 axis ,
14)  closed loop CNC controller and able to work with absolutely encoder motor

System function:

  1) System technical parameter
      controllable axes:X.Y.Z.A.B five axis.
      linkage axes:Arc 2-3 axes, liner 2-5 axes.
      pulse equivalent:X.Y.Z.A.B axes:0.001mm.
      max speed:X.Y.Z.A.B:60000mm/min.
      cutting speed:1-10000mm/min.
      min input unit:0.001mm.
      program size range:± 99999.999.
      99 tools management.
2)System function
   Auto-diagnosis function
    All around diagnosis of CPU, storer, LCD, I/O interface, parameter status, coordinates, machining program etc. shall execute when the system starts or resets. In operation, it makes real time diagnosis of power, spindle, limit and all I/O interface.
  Compensation function
    automatic backlash compensation.
    tool radius automatic compensation.
    tool radius automatic offset and sharp angle transition.
    leading screw pitch error automatic compensation.
 Abundant instruction system
   scaling up/down instruction
   mirror machining instruction.
   mutiple tool offset instruction.
   program cycle, jump, call and different program ending.

 ...

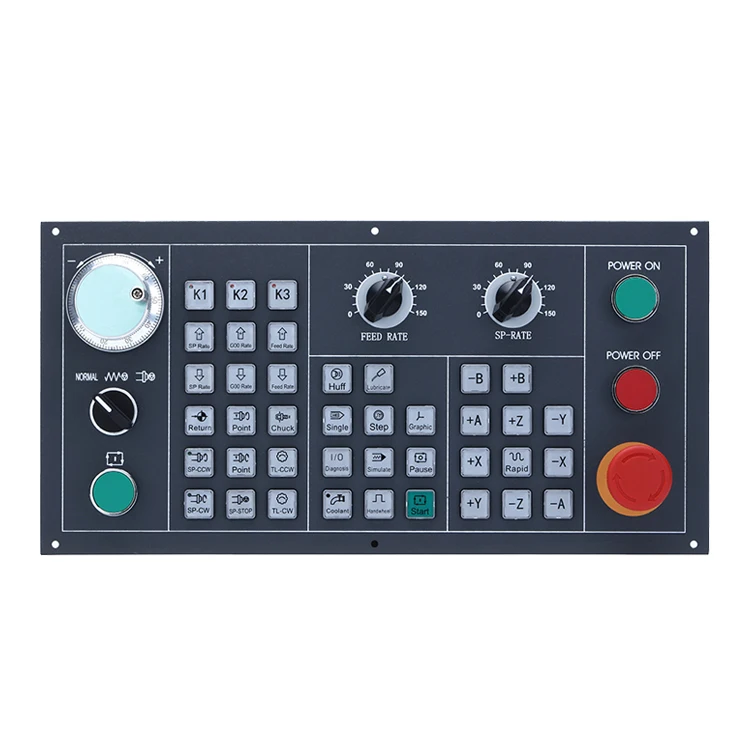

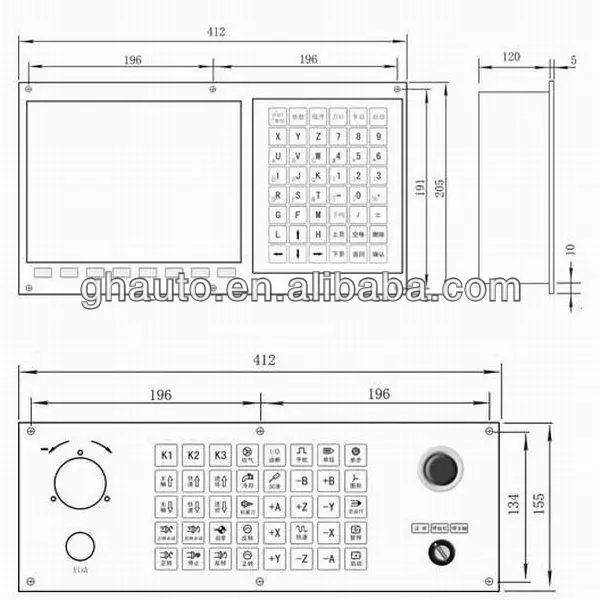

Product Picture:


Wiring Diagram :

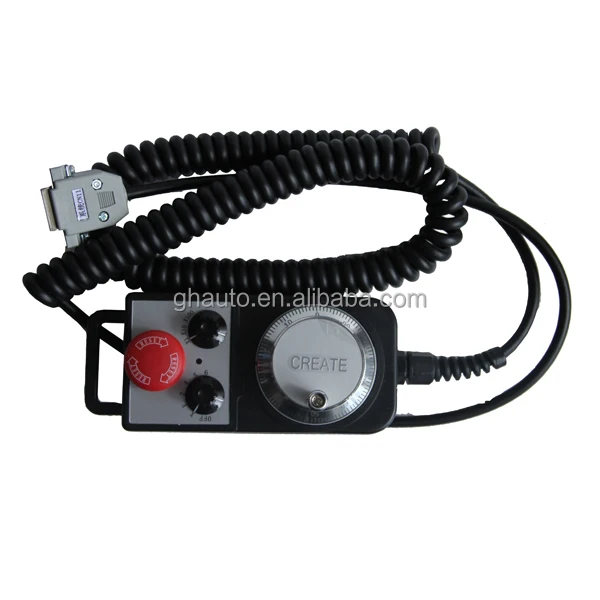

Optional part:









Packaging & Shipping

1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

2.Commercial packing: plastic bag+ foam boxes + carton

3.As the clients’ requirement

Delivery Detail: Normally ready goods and stock within 2-5days
